Item

Specification

Working Voltage

　3 Phase 50Hz 380V & 1Phase 50Hz 220V (Adjustable at request)

Motor Power

4KW

Compressed Air

　0.7Mpa

Hydraulic System Working Pressure

13Mpa（Max）

Hydraulic Station Cooling Method

 Fan Cooling

Hydraulic Platen Diameter

　￠570mm

Conveying Pipe

　￠76mm

Packing Container

300ml Cartridge

Filling Quantity

　160～320ml

Filling Speed

20-40pcs/minute

Filling Quantity Tolerance

+/-5g

Filling Style

　Manual

Sealing Style

  Automatic

Filling Quantity Control

　Automatic（Stroke length）

Operation Control

  PLC

Material Drum Size

　200L Straight Drum

Applicable Material

　Silicone Sealant, Acrylic Sealant, PU Sealant, MS Sealant, Construction Adhesive (Liquid Nails)

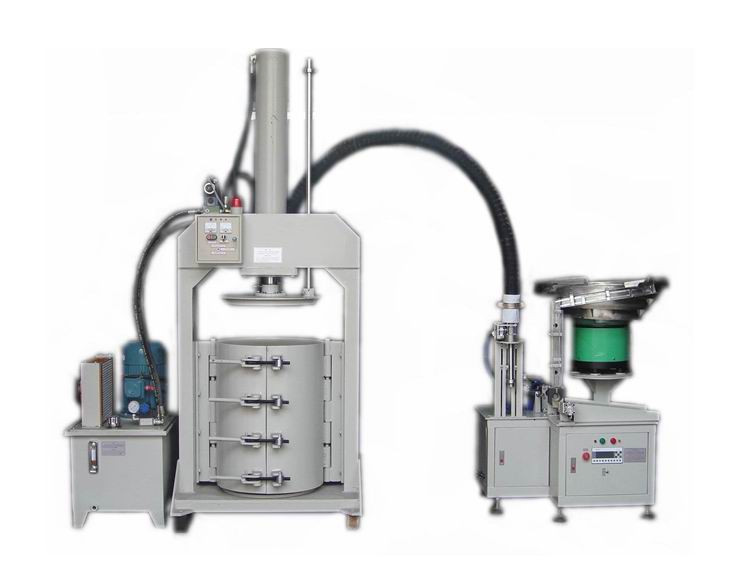

Structure

Hydraulic Drum Press + Filling and Sealing Station

Packing Size

Hydraulic Drum Press: 321*85*124cm

  Filling and Sealing Station: 125*125*160cm

Gross Weight

　Hydraulic Drum Press:1140Kgs

  Filling and Sealing Station: 280Kgs
