Items

Specification

Working Voltage

3 Phase 50Hz 380V & 1 Phase 50Hz 220V (Adjustable at request)

Motor Power

4+1.1KW

Compressed Air

　0.7Mpa

Hydraulic System Working Pressure

13Mpa（Max）

Hydraulic Station Cooling Method

 Fan Cooling

Hydraulic Platen Diameter

　￠570mm

Conveying Pipe Diameter

　￠76mm

Packing  Container

Aluminum Tube（diameter：24～32mm， Length：70～200mm）

Filling Tolerance

　35～120ml

Filling Speed

10-35pcs/minute

Tube Hold Quantity

16pcs

Filling Tolerance

+/-1g

Tube Feeding Style

Automatic （Tube Case can fit about 200pcs tubes）

Benchmarking Style

Automatic

Filling Style

　Automatic

Oil/Nitrogen Filling Style

  Automatic

Anti-curing Method

   Oil/Nitrogen Filling (Alternative)

Sealing Style

  Automatic（3 folding）

End Dating

  8 Digits (Max)

Filling Quantity Control

　Automatic （Stroke length）

Operation Control

  PLC

Material Drum Size

　200L Straight

Applicable Material

　Silicone Sealant

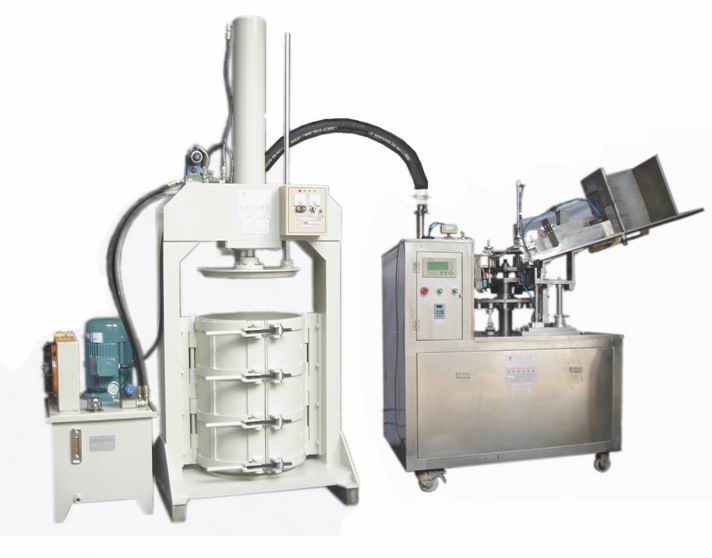

Structure

Hydraulic Drum Press + Filling and Sealing Station

Packing Size

Hydraulic Drum Press: 321*85*124cm

  Filling Station: 220*110*200cm

Gross Weight

　Hydraulic Drum Press: 1140Kgs

  Filling and Sealing Station: 600kgs
