Items

Specification

Working Voltage

　3 Phase 50Hz 380V & 1 Phase 50Hz 220V (Adjustable at request)

Motor Power

4+1.1KW

Compressed Air

　0.7Mpa

Hydraulic System Working Pressure

13Mpa（Max）

Hydraulic Station Cooling Method

 Fan Cooling

Hydraulic Platen Diameter

　￠570mm

Conveying Pipe Diameter

　￠76mm

Packing Container

Aluminum Tube （Diamter：24～32mm， Length：70～200mm）

Filling Quantity

　35～120ml

Filling Speed

10-35pcs/minute

Tube Holder Quantity

16pcs

Filling Tolerance

+/-1g

Tube Feeding Style

Manual

Filling Style

　Automatic

Oil/Nitrogen Filling Style

  Automatic

Anti-curing Method

   Oil/Nitrogen Filling (Alternative)

Sealing Style

  Automatic（3 folding）

End Dating

  8 Digits (Max)

Filling Quantity Control

　Automatic（Stroke length）

Operation Control

   PLC

Material Drum

　200L Straight Drum

Applicable Material

　Silicone Sealant

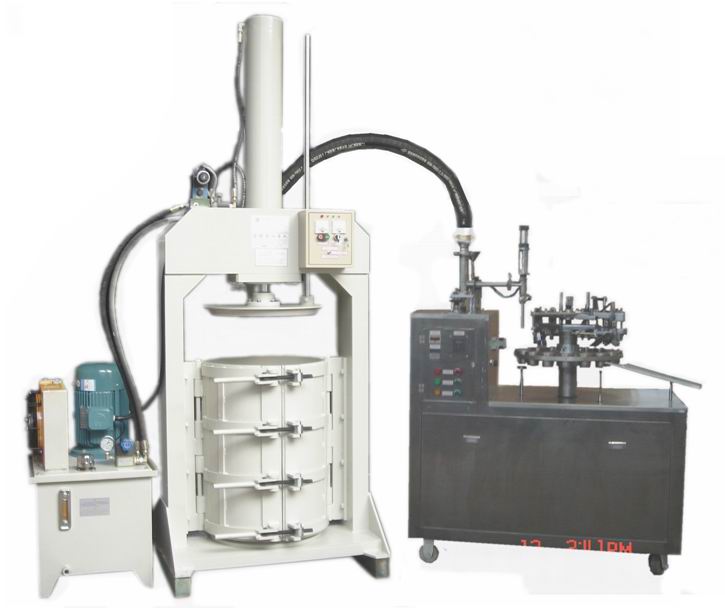

Structure

Hydraulic Drum Press + Filling and Sealing Station

Packing Size

Hydraulic Drum Press: 321*85*124cm

  Filling and Sealing Station: 200*85*180cm

Gross Weight

　Hydraulic Drum Press: 1140Kgs

  Filling and Sealing Station: 500Kgs
