Items

Specification

Working Voltage

　3 Phase 50Hz 380V  (Adjustable at request)

Motor Power

7.5+2+3KW

Compressed Air

　0.7Mpa

Hydraulic System Working Pressure

13Mpa（Max）

Hydraulic Station Cooling Method

 Fan Cooling

Hydraulic Platen Diameter

　￠570mm

Conveying Pipe Diameter

　￠76mm

Filled Sausage Diameter

   ￠46～48mm

Hot-sealing Bar Temperature

160～170℃

Hot-sealing Bar Width

12mm

Date Hot-Coding

8 digits (Max)

Clip Type

Great-wall Aluminum Clip

Packing Container

Aluminum Foil（Width:162mm, Thickness:0.05-0.08mm）

Filling Quantity

300～600ml

Filling Speed

15-30pcs/minute

Filling Tolerance

+/-2g

Hot-sealing Style

Automatic

Filling Style

　Automatic

Clipping Style

  Automatic

Filling Quantity Control

   Automatic (Servo Volumetric Dosing Cylinder)

Operation Control

  PLC

Material Drum

　200L Straight Drum

Applicable Material

　Silicone Sealant, Acrylic Sealant, PU Sealant, MS Sealant

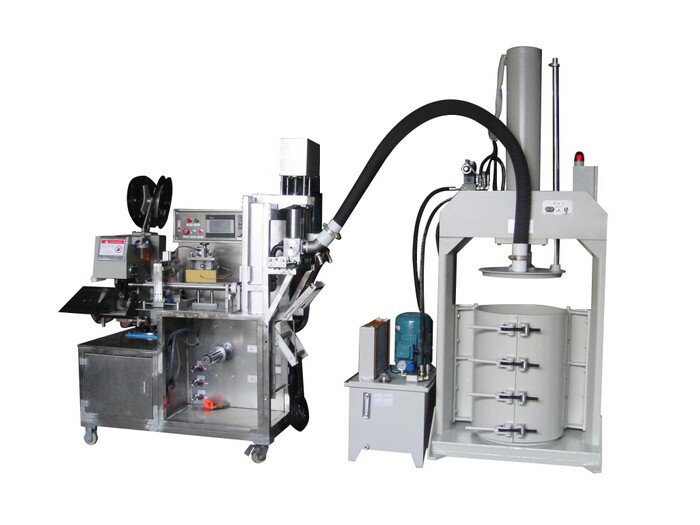

Structure

Hydraulic Drum Press + Hot-sealing, Filling and Clipping Station

Packing Size

Hydraulic Drum Press : 333*85*128cm

  Hot-sealing, Filling and Clipping Station : 205*110*185cm

Gross Weight

　Hydraulic Drum Press: 1300Kgs

  Hot-sealing, Filling and Clipping Station: 1000Kgs
