Items

Specification

Working Voltage

　3 Phase 50Hz 380V (Adjustable at request)

Motor Power

4+1+0.5+0.2KW

Compressed Air

　0.7Mpa

Hydraulic System Working Pressure

13Mpa（Max）

Hydraulic Station Cooling Method

 Fan Cooling

Hydraulic Platen Diameter

　￠570mm

Conveying Pipe Diameter

　￠76mm

Packing Container

300ml Cartridge

Filling Quantity

　160～320ml

Filling Speed

20-35pcs/minute

Filling Tolerance

+/-2g

Filling Style

　Automatic

Sealing Style

  Automatic

Filling Quantity Control

　Automatic（Servo Volumetric Dosing Cylinder）

Operation Control

  PLC

Material Drum

　200L Straight Drum

Applicable Material

　Silicone Sealant, Acrylic Sealant, PU Sealant, MS Sealant,

Construction Adhesive (Liquid Nails)

Structure

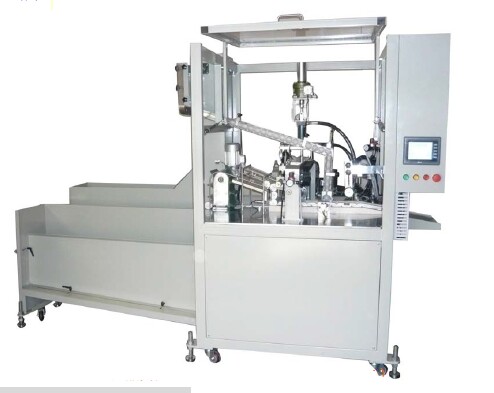

Hydraulic Drum Press + Filling and Sealing Station

Packing Size

Hydraulic Drum Press: 321*85*124cm

  Filling and Sealing Station: 2830x1730x2220(mm)

Gross Weight

　Hydraulic Drum Press: 1140Kgs

  Filling and Sealing Station: 1100Kgs
